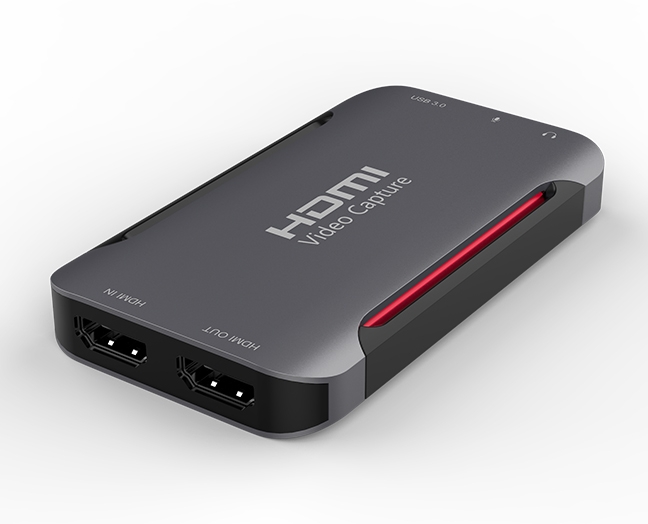

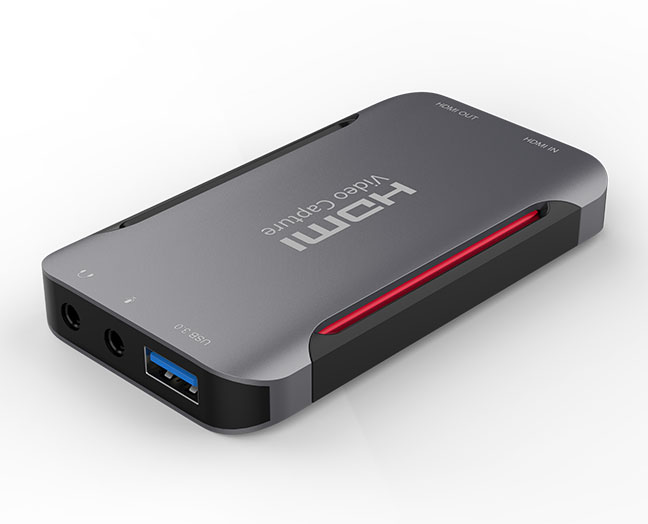

This is HDMI USB3.0 4K Audio Video Capture Card. Capture resolution up to 1080p for video source and it is ideal for all HDMI devices such as PS4, PS3, Xbox One, Xbox 360, Wii U, DVDs, DSLR, Camera, Security Camera and set top box. USB3.0 port records video to PC with 5Gbps transfer speed, much more powerful and speedy than outdated USB2.0; HDMI loop-out port can work on all TVs, monitors, projectors and other displays that equipped with HDMI output port, enjoy lots of fun when recording the video; 3.5mm Micro in and Audio out ports stream and record your voice via microphone, you can also add external commentary when playing a game. Suitable for Windows and Mac OS. High speed USB3.0 technology and superior low latency technology makes it easier for you to transmit live streaming to Twitch, Youtube, Facebook, Twitter, OBS, Potplayer and VLC.

Input: HDMI

Output:

1x USB-A 3.2 Gen1: record video to PC, 1920x1080p@60Hz

1x HDMI loop out: 1920x1080p@60Hz

1x 3.5mm Micro in

1x 3.5mm Audio out

Product Features:

【Plug and play, no driver installation required】It is compatible with Linux, Mac OS, Windows 7/8/10, no driver installation is required. Small size and easy to carry.

【Compatible with 1080P HDMI devices for highdefinition video capture】This game capture card has super compatibility, supports capturing 1080P HD video, and is compatible with 1080P HDMI devices, such as Wii U, PS4, PS3, Xbox One, Xbox 360, Wii, Nintendo Switch, DVD, camera, ZOSI security camera, DSLR and set top box etc.

【1080P 4K】HDMI USB3.0 4K Audio Video Capture Card supports 4K 30Hz pass-through compatible mode, ultra-low latency (about 0.1 seconds) to record 1080P video through output to HDMI loop. Customize the appropriate resolution/FPS type according to your PC configuration, and collect HDMI video signals suitable for game recording and live broadcast.

【USB3.0 data transmission】 USB3.0 high-speed transmission port, easy to record live broadcast, online video conference, video recording, web broadcast, etc. through Twitch, YouTube, obs, potplayer. Using 3.5mm microphone and audio port, you can play sound and record voice through 3.5mm microphone port. At the same time, you can listen to the game sound through the audio port.

【Ultra-low latency pass-through】Using HDMI loop-out port, almost zero-delay loop-out, full HD 1080P video capture, high-intensity reproduction of delicate colors of video, clear and vivid picture quality. All-metal body, It is recommended to be placed in a ventilated place,fast heat dissipation and prolong service life.

Specs:

Input: HDMI

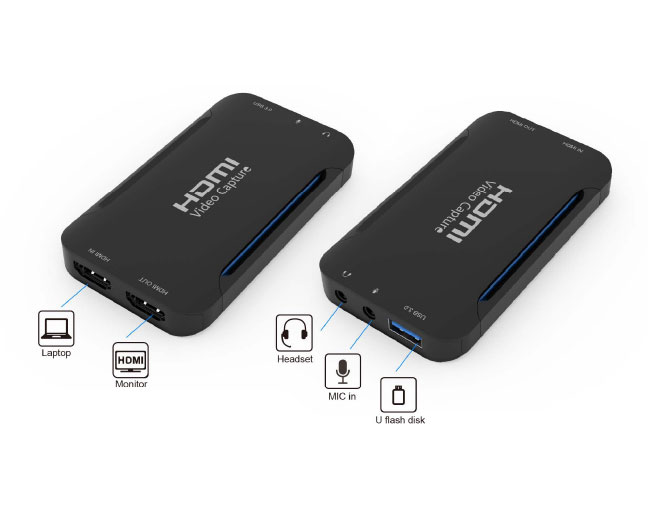

Output: USB3.0, HDMI loop out, 3.5mm Micro in, 3.5mm Audio out

Certificate: ROHS.REACH

Material: ABS

Dimension: 100 x 57 x 13mm

Package Contents:

1x HDMI USB3.0 4K Audio Video Capture Card

1x User Manual
