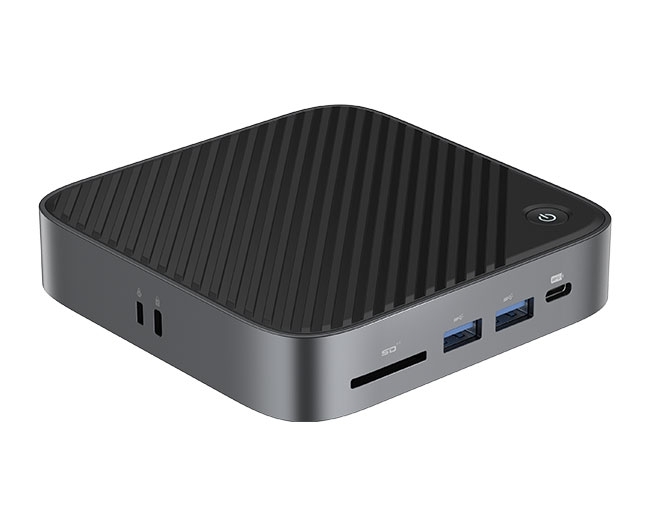

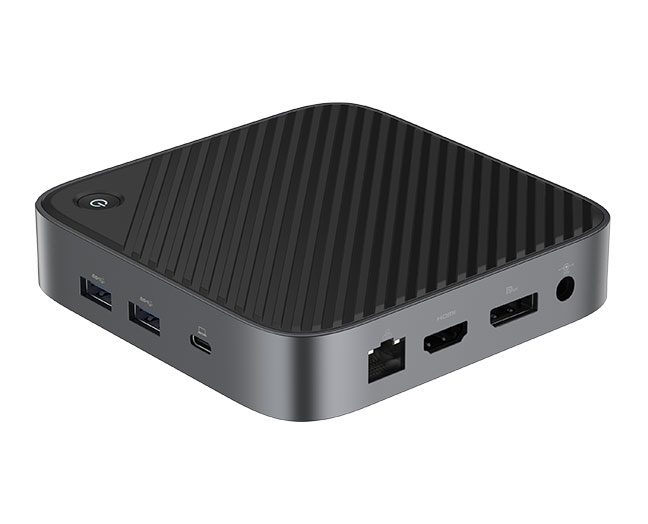

This is 10-in-1 Dual Display MST Docking Station, Plug and play, no need to install drivers, no time wasted. Two video outputs of HDMI and DisplayPort MST function is one of the most popular performances in docking series. This Docking Station supports USB-C interface devices with DP/DSC functions, and is compatible with TBT3/TBT4/USB4/USB3.2; Support dual-display MST function, dual display support up to 4K@60Hz resolution (with DSC1.2), easily extend your screen to dual monitor, significantly improve work efficiency.

Input: USB-C (DP alt mode)

Output:

1x DisplayPort: 8K@30Hz W/DSC1.2, support HBR3, SST/MST

1x HDMI: 8K@30Hz W/DSC1.2, support HDR, HDCP2.2

1x USB-C: 5Gbps, BC1.2

4x USB3.0-A: 5Gbps, BC1.2

1x RJ45: 10/100/1000Mbps

1x SD4.0: 312MB/s

1x  DC: 96W 24V/4A (65W to host)

2 x Kensington lock (Different dimensions)

Accessory: 96W DC Adapter & USB C full-function 1m cable included

Product Features:

1. Plug and play, no need to install drivers, no time wasted.

2. Square mini shape, with stripe design on the top silicone sheet, smart and fashionable, comfortable in hand, and can also relieve the surface temperature;

3. DP video interface support up to 8K@30Hz resolution with DSC1.2, also supports HBR3.

4. HDMI video interface support up to 8K@30Hz resolution, also supports HDR, HDCP2.2.

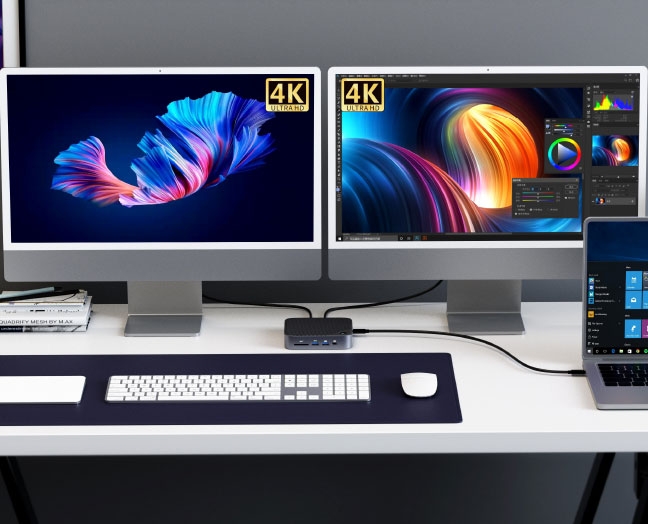

5. Support dual-display MST function, HDMI dual display support up to 4K@60Hz resolution (with DSC1.2), easily extend your screen to dual monitor, significantly improve work efficiency.

6. 4 USB-A and 1 USB-C interfaces support data transfer rate up to 5Gbps, and support BC1.2 fast charging function, which can improve the charging speed of peripheral devices such as mobile phones.

7. SD4.0 card reading slot supports up to 312MB/s card reading rate.

8. 3.5mm audio interface support audio input and microphone input.

9. RJ45 port supports 1000Mbps (1Gbps) high-speed and stable network, no lag and no delay, compatible with 100/10Mbps Ethernet.

10. 96W DC adapter supports 24V/4A (65W to charge the host). Users can also choose a higher power adapter, just need to upgrade the software.

11. Top button is a touch switch of turnning on/off the whole dock and for energy conservation;

12. Comply with CE, FCC certification, ROHS, REACH, PROP65 and other standards, safe, reliable and environmental friendly.

Specs:

Input: USB-C

Output: DP1.4, HDMI, 4* USB-A, USB-C, RJ45, SD4.0, DC96W

Certificate: ROHS.REACH

Material: ABS

Dimension: 116 x 116 x 28mm

Package Contents:

 x 10-in-1 Dual Display MST Docking Station

1x User Manual
