Input: USB-C (DP1.4 alt mode)
Output:
1x HDMI: 8K@30Hz (Support dual 4K display)
1x HDMI: 4K@60Hz
1x USB C: 5Gbps, BC1.2
3x USB3.0-A: 5Gbps, BC1.2
1x RJ45: 10/100/1000Mbps
1x SD4.0: 312MB/s
1x Audio with Mic
1x DC: 96W (65W to host)
2 x Kensington lock (Different dimensions)
Accessory: 96W DC Adapter & USB C full-function 1m cable included
1. Plug and play, no need to install drivers, no time wasted.
2. HDMI video interface support up to 8K@30Hz resolution with DSC1.2, also supports HDR, HDCP2.2.
3. HDMI video interface support up to 4K@60Hz resolution, also supports HDR, HDCP2.2.
4. Support dual-display MST function, easily extend your screen to dual monitor, significantly improve work efficiency.
5. 3 USB-A and 1 USB-C interfaces support data transfer rate up to 5Gbps, and support BC1.2 fast charging function, which can improve the charging speed of peripheral devices such as mobile phones.
6. SD4.0 card reading slot supports up to 312MB/s card reading rate.
7. 3.5mm audio interface support audio input and microphone input.
8. RJ45 port supports 1000Mbps (1Gbps) high-speed and stable network, no lag and no delay, compatible with 100/10Mbps Ethernet.
9. 96W DC adapter supports 24V/4A (65W to charge the host). Users can also choose a higher power adapter, just need to upgrade the software.
10. Comply with CE, FCC certification, ROHS, REACH, PROP65 and other standards, safe, reliable and environmentally friendly.
Input: USB-C
Output: 2* HDMI, HDMI, 3* USB-A, USB-C, RJ45, SD4.0, Au, DC96W
Certificate: ROHS.REACH
Material: ABS
Dimension: 116 x 116 x 28mm

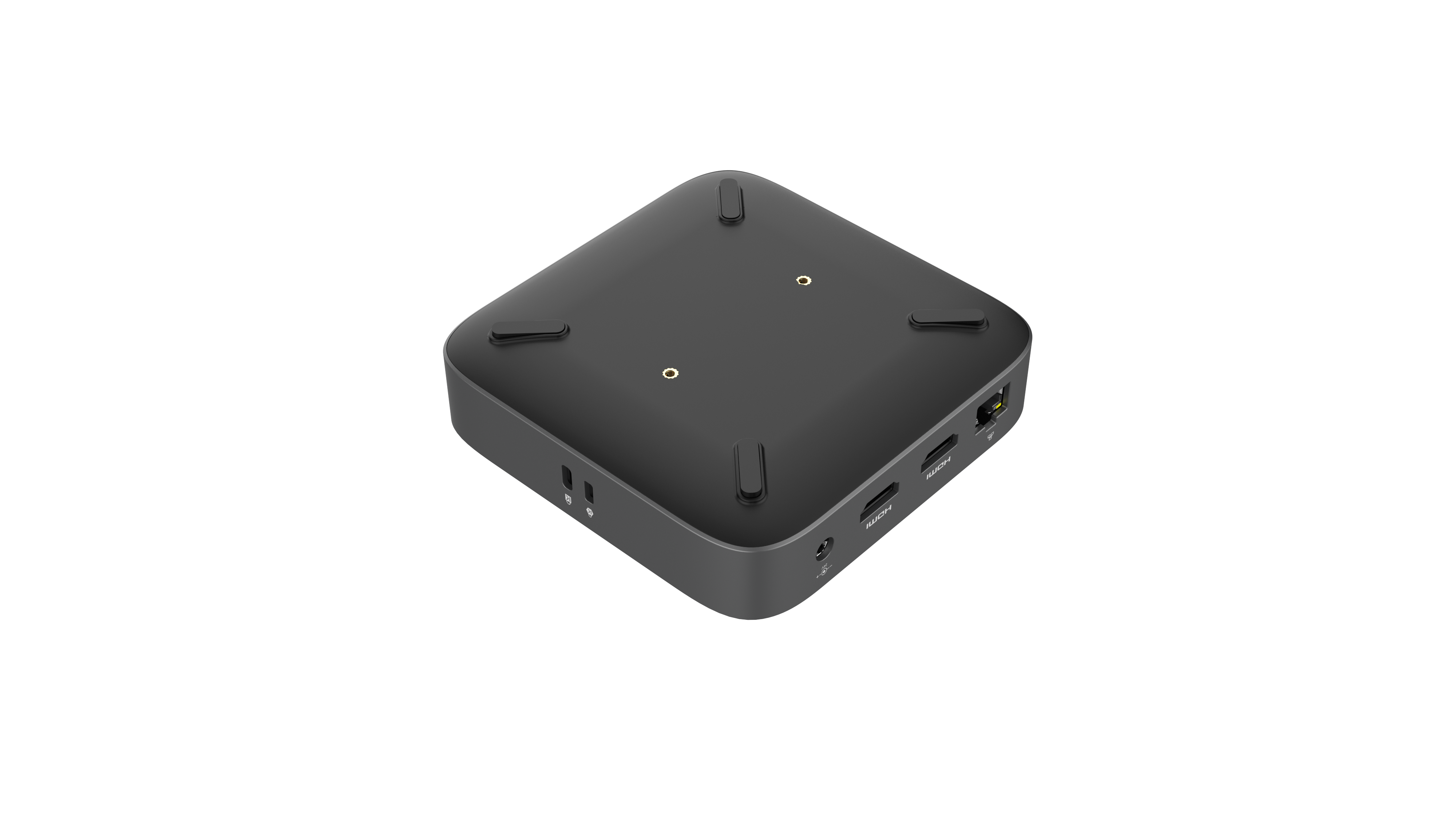

1x 10-in-1 Dual Display MST Docking Station
1x User Manual
