13-in-1 USB4 MST Dual Display Docking Station, USB4 Laptop Dock
13-in-1 USB4 MST Dual Display Docking Station, USB4 Laptop Dock
13-in-1 USB4 MST Dual Display Docking Station, USB4 Laptop Dock

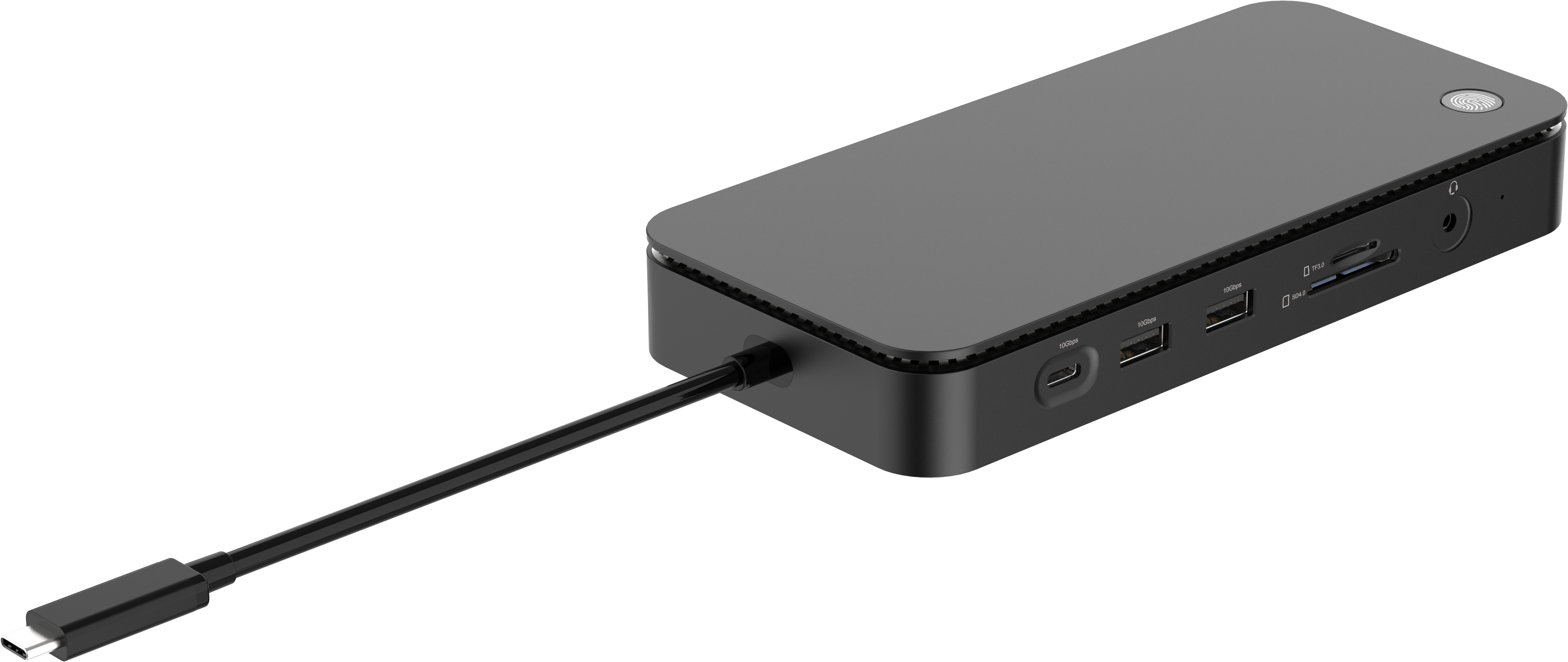

13-in-1 USB4 MST Dual Display Docking Station
Model No.: 1185
This product is a 13-in-1 USB4 MST Dual Display Docking Station with the newest technology of USB4, which featuring HDMI and DP1.4 ports for single display 8K resolution and dual 4K@60Hz resolution, compatible with USB4 computers and laptops/host devices with USB-C full-featured interfaces. HDMI and DP1.4 video interface can reach up to 8K@30Hz resolution; 2x Gen2 USB-C and 1x Gen2 USB-A data port support up to 10Gbps high-speed transfer rate, can be connected to hard disk, U disk , keyboard, mouse, card reader, etc., and support BC1.2 fast charging function, can provide a maximum current of 1.5A when used alone; RJ45 network port can provide a stable network environment of up to 1000Mbps (1Gbps) ultra-fast speed; SD4.0 port supports 312MB/s data transfer rate and TF3.0 card reader slot supports 104MB/s fast transfer rate; DC power interface can support up to 100W power supply to the computer, ensuring long-term work. NOTE: This docking station needs to be connected to a DC power supply before used.
Inquiry Now
Overview:

Input: USB4 (DP alt mode)

Output:

1x DisplayPort: 8K@30Hz (W/DSC), 4K@144Hz

1x HDMI: 8K@30Hz (W/DSC), 4K@144Hz

2x USB-C Gen2: 10Gbps, BC1.2

1x USB-A Gen2: 10Gbps, BC1.2

1x USB-A Gen1: 5Gbps

2x USB-A: 480Mbps

1x SD4.0: 312MB/s

1x TF3.0: 104MB/s

1x RJ45: 1Gbps

1x 3.5mm: Audio and Microphone

1x DC: 150W (100W to host)


Power button on the back, Fingerprint button on the top

Kensington lock with two different dimensions

30cm distance for mounting plate holes


Product Features:

1. Plug and play, no need to install drivers, no time wasted.

2. black plastic housing, classic and durable.

3. It is backward compatible with USB3.2/3.1/3.0/2.0/Thunderbolt 3 protocol.

4. HDMI and DP video interface support up to 8K@30Hz resolution with DSC, also supports HDR, HDCP2.2

5. Dual display (HDMI+DP) can reach up to 4K/60Hz resolution, greatly improve work efficiency.

6. 2x USB-C and 1x USB-A interface can support data transfer rate up to 10Gbps, and support BC1.2 fast charging function.

7. 1x USB-A port can support up to 5Gbps transmission rate, which can meet the high-speed copy data of U disk, hard disk, etc.

8. 2x USB2.0-A ports can support the use of low-power devices such as keyboard and mouse.

9. RJ45 port supports 1000Mbps (1Gbps) high-speed and stable network, no lag or delay.

10. There is a fingerprint button on the top, which can be used to wake up the computer and then unlock the computer.

11. There is a switch button on the back of the docking station, can power off the product and enter the energy-saving mode.

12. Comply with CE, FCC certification, ROHS, REACH, PROP65 and other standards, safe, reliable and environmentally friendly.


Specs:

Input: USB4

Output: HDMI, DisplayPort1.4, 2* USB-C, 4* USB-A, SD4.0, TF3.0, RJ45, Au, DC150W

Certificate: ROHS.REACH

Material: ABS

Cable Length: 0.8m

Dimension: 175 x 81.5 x 28.5mm


Package Contents:

1x 13-in-1 USB4 Dual Display Docking Station

1x User Manual
