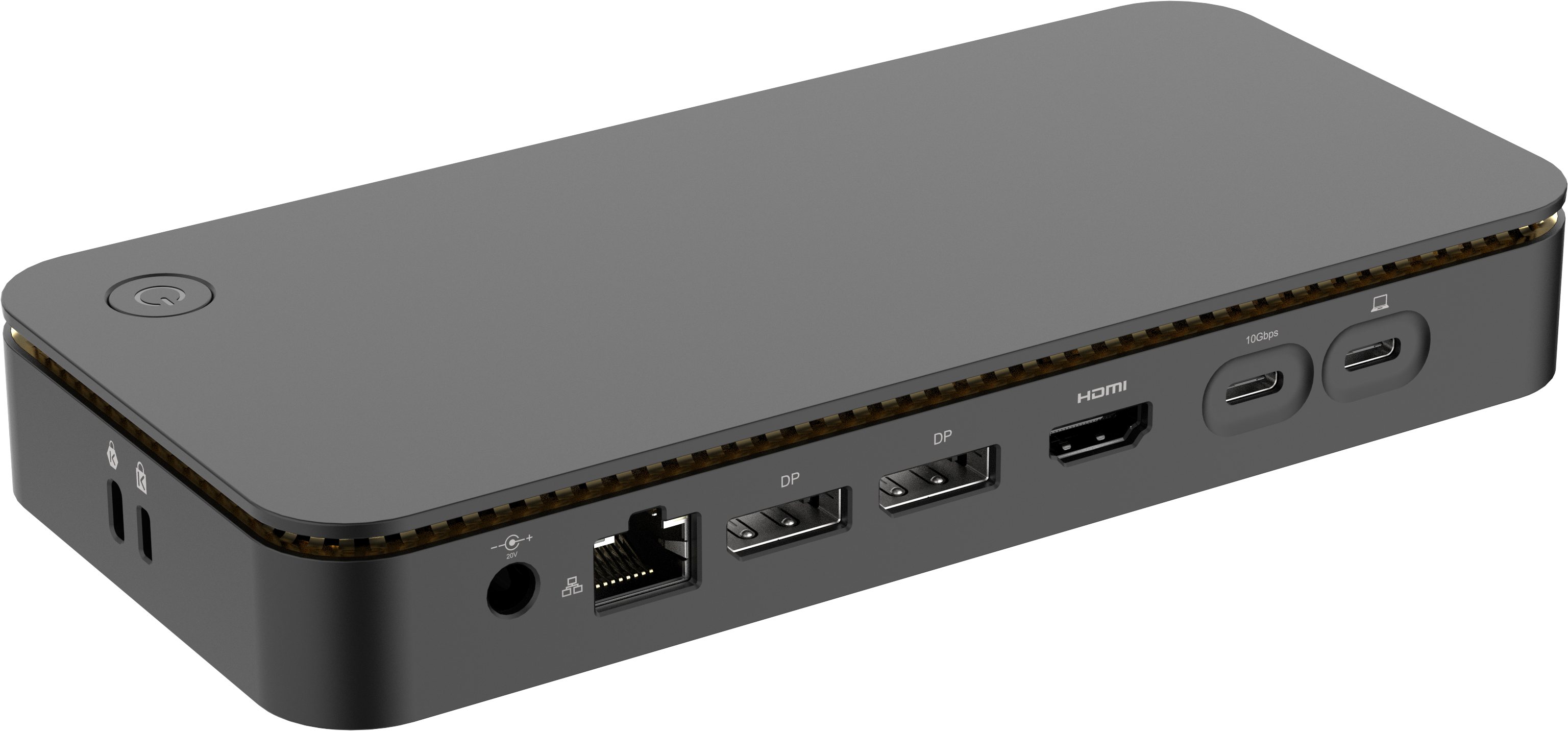

11-in-1 Triple Display MST Docking Station
11-in-1 Triple Display MST Docking Station
11-in-1 Triple Display MST Docking Station
11-in-1 Triple Display MST Docking Station
Model No.: 1189
This is 11-in-1 Triple Display MST Docking Station, support triple MST display and compatible with USB-C port enabled TV/monitors via USB-C cable connection. Gen2 USB ports support up to 10Gbps data transfer. 100W charging to the host devices. Multi-display for handling multitaskings to improve the productivity.
Inquiry Now

Input: USB-C (DP1.4)


2x DisplayPort: Single 8K@30Hz (W/DSC)

1x HDMI: 4K@60Hz

2x USB-C: 10Gbps, BC1.2

1x USB-A: 10Gbps, BC1.2

2x USB-A: 5Gbps

1x RJ45: 10/100/1000Mbps

1x 3.5mm: Audio output and Microphone input

1x DC: 150W (100W to host)

2x Different Dimension Kensington Lock

Accessory: USB-C full-functional 1m cable + 150W Power Adapter

Product Features:

1. Plug and play, no need to install drivers, no need to wait;

2. black plastic shell appearance, classic and durable, sleek outline, office business style;

3. Compatible with USB4/Thunderbolt 3/Thunderbolt 4 protocol, downward compatible with USB3.2/3.1/3.0/2.0 protocol; Compatible with most devices;

4. DP1.4 video interfaces support resolution up to 8K@30Hz (4K@144Hz) with DSC, and also support HDR, HDCP2.2; HDMI interface supports the highest resolution up to 4K@60Hz;

5. Both dual video output and triple video output can reach 4K resolution;

6. 2x USB-C and 1x USB-A interface can support high-speed data transfer rate up to 10Gbps, no need to wait for a long time, and support BC1.2 fast charging function;

7. 2x USB-A can support up to 5Gbps transmission rate, which can meet the high-speed copy data of U disk, hard disk, etc.;

8. A total of 5 data interfaces (2C+3A), sufficient data can meet all usage needs, and solve the problem of insufficient data interfaces;

9. RJ45 port supports 1000Mbps (1Gbps) high-speed and stable network, no lag or delay;

10. 1x DC power interface, which needs to be matched with a 150W adapter, can support the full power transportation of the docking station and also provide 100W to charge the computer;

11. There is a switch button on the back of the docking station. Just a single touch of the finger can turn off the power of the product, so as not to consume the power of the computer, and enter the power saving mode easily and quickly, without tediously turning off the computer or pressing the keyboard;

12. Comply with CE, FCC certification, ROHS, REACH, PROP65 and other standards, safe, reliable and environmental friendly.


Input: USB-C

Output: 2x DP1.4, HDMI, 2x USB-C, USB-A, 2x USB-A, RJ45, 3.5mm, DC 150W

Certificate: ROHS.REACH

Material: ABS


Package Contents:

1x 11-in-1 Triple Display MST Docking Station

1x User Manual
