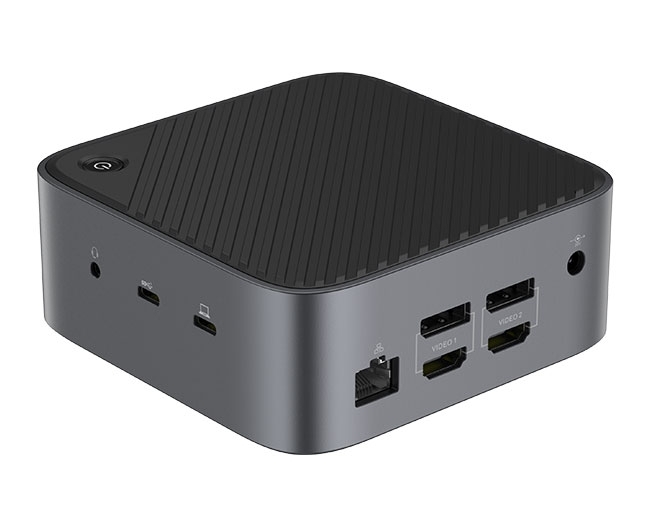

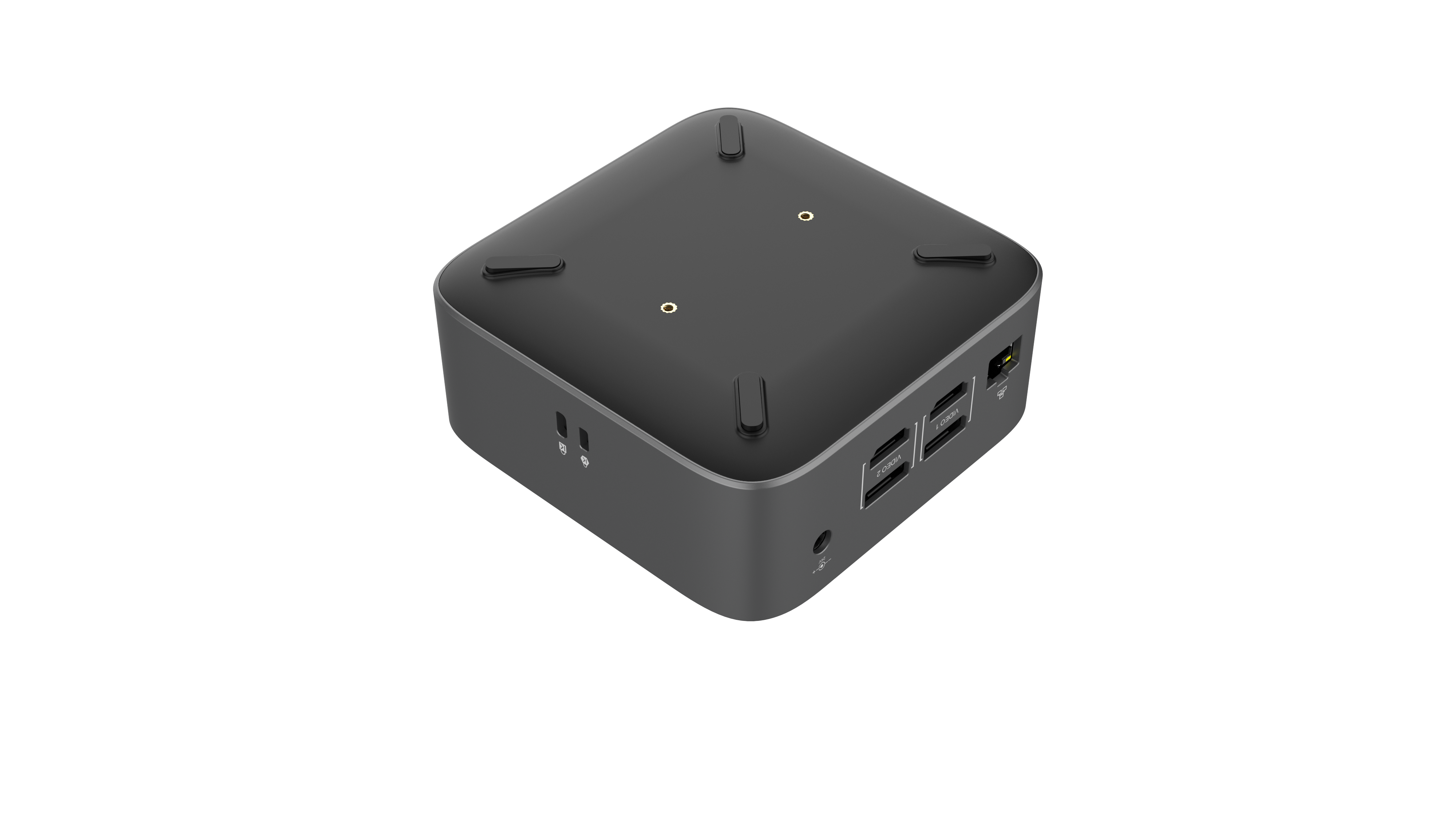

12-in-1 DisplayLink Dual Display Mini Docking Station
12-in-1 DisplayLink Dual Display Mini Docking Station
12-in-1 DisplayLink Dual Display Mini Docking Station
12-in-1 DisplayLink Dual Display Mini Docking Station
Model No.: 1210
This is 12-in-1 DisplayLink Mini Docking Station with dual DP port and dual HDMI port, supports the devices with USB-A or USB-C output (USB3.0). Featuring a hybrid 2-in-1 USB 3.0 and USB-C cable, a single connection from a host PC to this USB-C docking station. Due to Displaylink chipset, it support 3 options (DP+DP, DP+HDMI, HDMI+HDMI) from two groups of (DP+HDMI) display output; 3A+1C provide abundant connection for external devices with up to 5Gbps data transfer, another USB-A 2.0 for up to 480Mbps transmission; SD4.0 data transfer rate supports up to 312MB/s high speed for card reader.; 96W charging power to host device.
Inquiry Now

Input: USB-C


2x DisplayPort: 3840x2160@60Hz

2x HDMI: 3840x2160@60Hz

1x RJ45: 10/100/1000Mbps, support PXE & WOL

3x USB-A: 5Gbps, BC1.2

1x USB-C: 5Gbps, BC1.2

1USB2.0: 480Mbps

1x 3.5mm Audio with Mic

1x DC 96W 24V/4A: 65W to host

2x Different Dimension Kensington Lock

Accessory: 96W DC Adapter & USB-C full functional 1m cable

Product Features:

1. Plug and play, no need to install drivers, no time wasted.

2. HDMI+DP video interface support dual display up to 4K@60Hz resolution.

3. Support dual-display, up to 4K@60Hz resolution, easily extend your screen to dual monitor, significantly improve work efficiency.

4. 3 USB-A and 1 USB-C interfaces support data transfer rate up to 5Gbps, and support BC1.2 fast charging function, which can improve the charging speed of peripheral devices such as mobile phones.

5. 3.5mm audio interface support audio input and microphone input.

6. RJ45 port supports 1000Mbps (1Gbps) high-speed and stable network, no lag and no delay, compatible with 100/10Mbps Ethernet.

7. 96W DC adapter supports 24V/4A (65W to charge the host). Users can also choose a higher power adapter, just need to upgrade the software.

8. Comply with CE, FCC certification, ROHS, REACH, PROP65 and other standards, safe, reliable and environmentally friendly.


Input: USB-C

Output: 2x DisplayPort, 2x HDMI, 3x USB-A, USB-C, RJ45, USB2.0, Au, DC96W

Certificate: ROHS.REACH

Material: ABS+PC

Dimension: 116 x 116 x 50mm

Package Contents:

1x 12-in-1 DisplayLink Dual Display Mini Docking Station

1x User Manual
