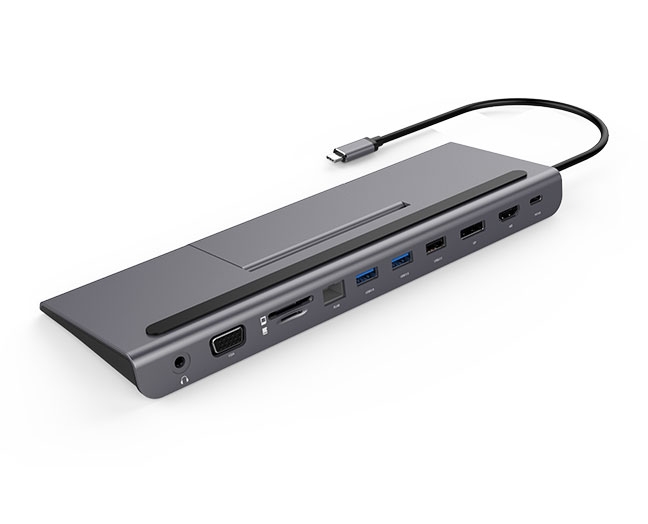

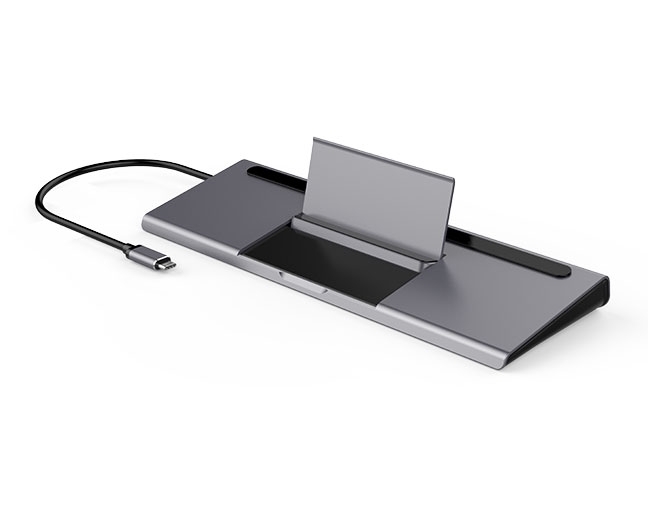

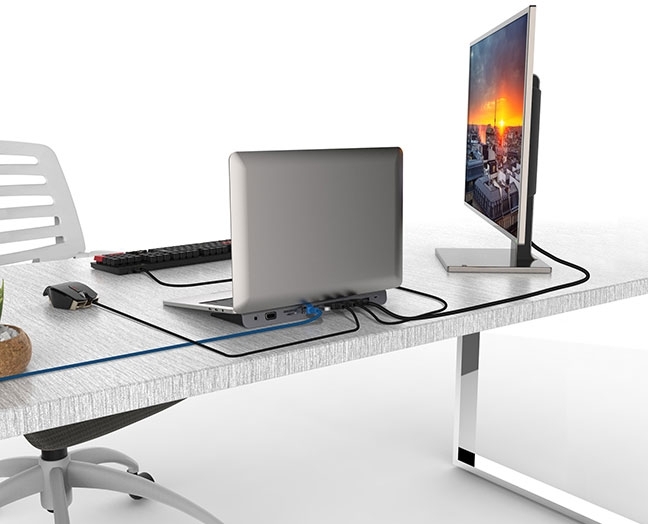

This is 11-in-1 USB-C Fully Functional Docking Station, features HDMI, DisplayPort, and VGA video options and supports high-definition display resolutions up to 4K 30Hz, extend the display of laptop/tablet/phone to TV, monitor or projector. Sits neatly at a desk, easily keeps cables organized with connection at the back, and doubles as a laptop stand.

Input: USB-C

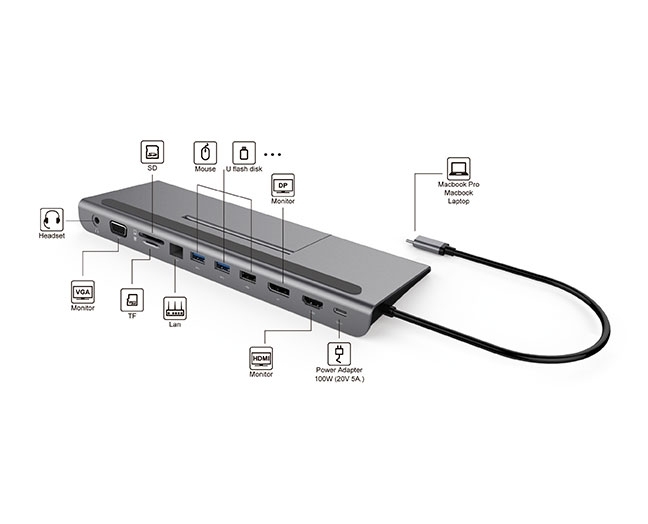

Output:

1x DisplayPort (4K@30Hz)

1x HDMI (4K@30Hz)

1x VGA (1920x1080@60Hz)

2x USB3.2 Gen1-A (5Gbps)

1x USB2.0-A

1x Ethernet Gigabit RJ45 (10/100/1000Mbps)

1x SD3.0 slot

1x Micro SD3.0 Slot

1x USB-C PD3.0 100W

1x 3.5mm audio

Support MST mode (triple display), HDCP1.4, 3D, 7.1CH

Product Features:

1. Compliant with USB3.1 Type C, and DisplayPort Alt Mode.

2. Single HDMI output max resolution up to 4K@30Hz.

3. Single DisplayPort output max resolution up to 4K@30Hz.

4. Single VGA output max resolution up to 1920x1080P@60Hz.

5. Dual video output (DP+HDMI, HDMI+VGA, DP+VGA) max resolution up to 1920x1080P@60Hz with Multi-Stream Transport (MST) technology.

6. Triple video output (DP+HDMI+VGA) max resolution up to 720P@60Hz with Multi-Stream Transport (MST) .

7. USB3.0-A supports max data transmission up to 5Gbps ,and support BC1.2 quick charge with max power at 5V 1.5A.

8. USB2.0-A support max data transmission up to 480Mbps.

9. SD/Micro SD slot compliant with SD3.0, data transmission speed up to 832Mbps.

10. Support 3.5mm audio output, and supports MIC recording function, supporting 48K/44.1KHz audio sampling rate.

11. Support Ethernet Gigabit speed to 10/100/1000Mbps, no driver needed.

12. USB-C supports PD3.0 at 100W (20V/5A).

Note: Windows system triple display need to manually adjust the resolution and frequency of each display before it can be displayed (three ports with the same screen to turn off the computer screen / this state is Intel graphics card limit, can only support three display including notebook display Inside).

Caution:

1. Confirm the display resolution can reach requirements before use.

2. Insert the charger that meets the TYPE C protocol to the TYPE C port to charge the device.

3. When using, confirm that the PIN in the product is not sunken or bent, so as not to affect the insertion and removal.

4. Be careful not to splash liquid into the connector during use, so as not to affect its performance.

5. This 11-in-1 USB-C Fully Functional Docking Station should be placed in a dry place, not in a humid environment.

6. When using the DEX function mode of the Samsung S8 S9 mobile phone, be careful to insert the PD charger before using it.

7. MacBook dual graphics card includes (MAC2015 PRO, MAC2016, MAC 2017 PRO), etc. When the docking station is connected to display HDMI+VGA/DP+VGA with the same status, the host will complete the communication protocol by MST when communicating with the product, and can only release The SST signal flow, at this time the MAC will release the maximum resolution collected (4K@30Hz) to output, because VGA can only support to 1080P, this situation will cause VGA can not be displayed. The MacBook dual graphics device VGA can only be displayed separately and cannot be displayed simultaneously with HDMI/DP.

Specs:

Input: USB-C

Output: DisplayPort, HDMI, VGA, 2x USB3.2 Gen1-A, USB2.0-A, RJ45, SD3.0, Micro SD3.0, USB-C PD3.0, 3.5mm

Certificate: ROHS.REACH

Material: Aluminum

Weight:

Dimension: 116 x 80 x 16mm

Package Contents:

1x 11-in-1 USB-C Fully Functional Docking Station

1x User Manual
