This 6-in-1 Splicing USB-C Hub with PCIe. This product combines M.2 NVMe, SSD and USB-C hub as a module, which can be used in combination or separately, not only meets the needs of display/data transmission/charging, but also meets the needs of large-capacity and ultra-high-speed expansion storage space. The cable is fixed in the middle by magnetic absorption and can form a handle to make the product more portable. M.2 can be turned off individually by a switch to reduce energy consumption and heat generation. There is a simple switch at the bottom of the M.2 module, which is convenient for users to change M.2 SSD of different brands and capacities.

Input: USB-C

Output:

Module1:USB-C to PCIe (M.2 NVMe and SATA compatible: 10 Gbps for NVMe,6 Gbps for SATA)

Module2:

1 x HDMI: 4K@60Hz, support HDR, HDCP2.2

2 x USB-A: 5Gbps, BC1.2

1 x USB-C: 5Gbps (transfer to PCIe between two modules)

1 x RJ45: 10/100/1000Mbps

1 x PD3.0: 100W

Product Features:

1. Splicing design, combines M.2 NVMe, SATA SSD and USB-C hub as a module, which can be used in combination or separately, meet the needs of different users.

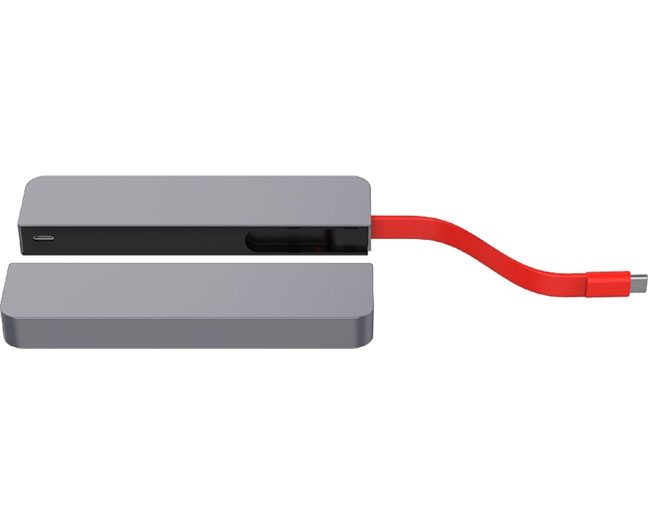

2. The cable is fixed in the middle by magnetic absorption and can form a handle to make the product more portable.

3. Compatible the devices with USB4/3.1/3.0/2.0/Thunderbolt 3/Thunderbolt 4 interface.

4, HDMI video interface supports up to 4K/60Hz resolution, supports HDR, HDCP2.2, backward compatible.

5. 2x USB-A ports support data transfer rates up to 5Gbps, and support BC1.2 fast charging function.

6. USB-C port supports PD3.0 charging power up to 100W, which is enough to charge high-power computers.

7. RJ45 network port supports high-speed and stable network up to 1000Mbps (1Gbps), no lag or delay.

8. PCIe card slot is compatible with NVMe and SATA protocol M.2 SSD cards.

9. Complies with CE, FCC certification, ROHS, REACH, PROP65 and other standards, safe, reliable and environmentally friendly.

Note: PCIe will be up to 5Gbps once combined together, as only Type C male with built-in cable of module 2 as input.

Specs:

Input: USB-C

Output: HDMI, 2xUSB-A, RJ45, USB-C, PD3.0, PCIE Enclosure (M.2 NVMe&STA)

Certificate: ROHS.REACH

Material: Aluminum

Dimension: 140 x 68 x 15mm

Package Contents:

1x 6-in-1 Splicing USB-C Hub with PCIe

1x User Manual
