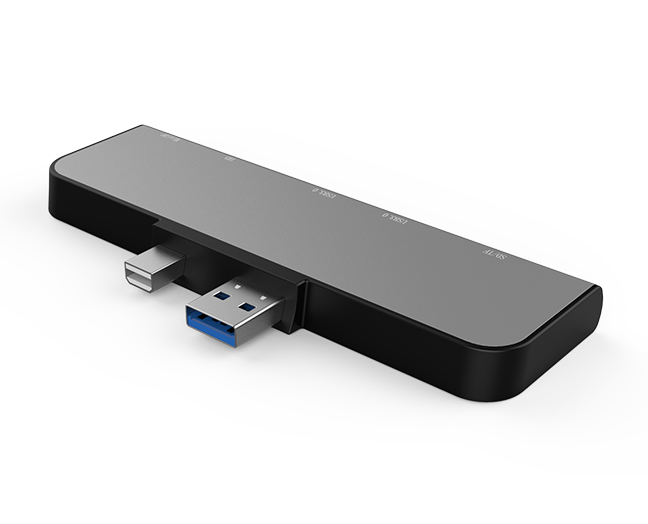

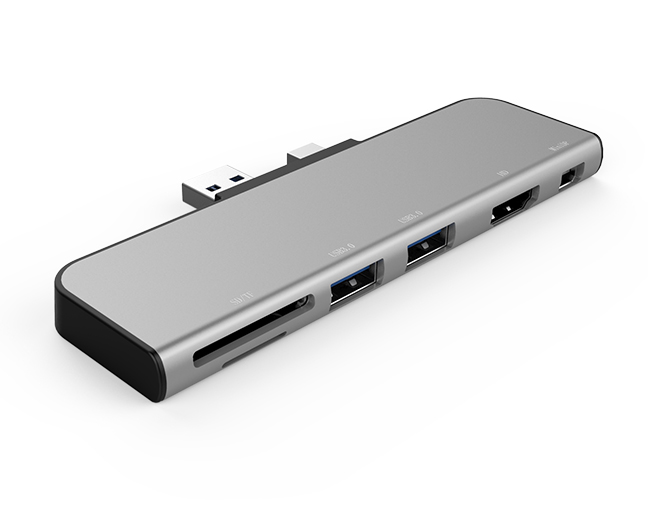

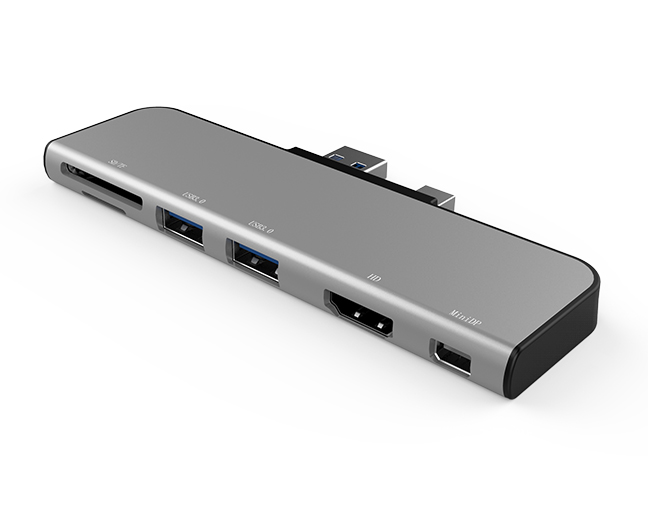

This is Mini DisplayPort Hub for Surface Pro 4 & 5 & 6, it features MINI DP+USB3.0-A to MINI DP+HDMI+USB3.0+SD&TF, SD3.0 / Micro SD3.0 version, data transmission speed up to 104MB/s, SD/Micro SD card can read/write at same time.

Input:  Mini DisplayPort+USB3.0

Output:

1x Mini DisplayPort (4K@60Hz)

1x HDMI (4K@30Hz)

2x USB3.0 (5Gbps)

1x SD3.0

1x Micro SD3.0

Product Features:

1. Specially designed for Microsoft Surface Pro Series 4/5/6.

2. HDMI output max resolution up to 4K@30Hz.

3. Mini DisplayPort output max resolution up to 4K@60Hz.

4. USB3.0-A data transmission speed up to 5Gbps, backward compatiable with USB2.0 480Mbps(60MB/s).

5. SD3.0 / Micro SD3.0 version, data transmission speed up to 104MB/s, SD/Micro SD card can read/write at same time.

Note: Only support Single Video Display, when both Mini DP and HDMI connected, Mini DP monitor display first.

Caution:

1. Ensure MINI DisplayPort and USB3.0-A are good connect when use.

2. Insert or remove softly to prevent damage to the connector terminals.

3. Be careful not to splash liquid into the connector during use, so as not to affect it's performance.

4. The product should be placed in a dry place, not in a humid environment.

5. This Mini Displayport Hub only supports Microsoft Surface Pro (dual interface matching).

6. MINI DP display is prior when MINI DisplayPort and HDMI are used at the same time.

Specs:

Input: Mini DisplayPort+USB3.0

Output: Mini DisplayPort, HDMI, 2x USB3.0, SD3.0, Micro SD3.0

Certificate: CE, FCC, ROHS, REACH

Material: Aluminum

Dimension: 115 x 43 x 10mm

Package Contents:

1x Mini DisplayPort Hub for Surface Pro 4 & 5 & 6

1x User Manual
