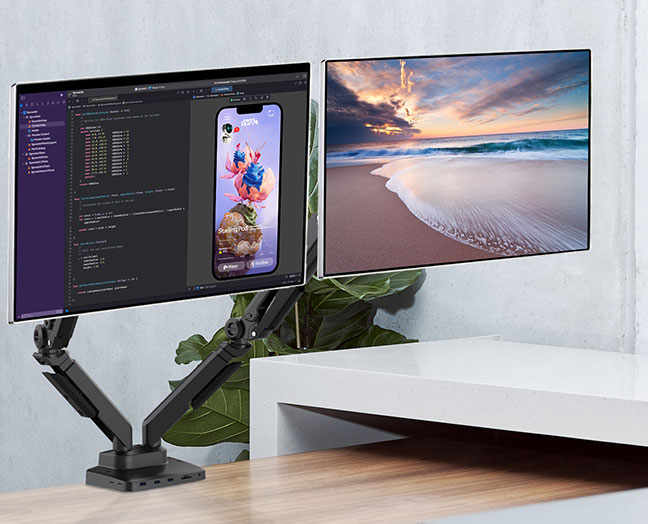

Gas Spring Dual Monitor Arm with Full Function Dual 4K Hybrid Video Docking Station
Gas Spring Dual Monitor Arm with Full Function Dual 4K Hybrid Video Docking Station
Gas Spring Dual Monitor Arm with Full Function Dual 4K Hybrid Video Docking Station
Gas Spring Dual Monitor Arm with Full Function Dual 4K Hybrid Video Docking Station
Gas Spring Dual Monitor Arm with Full Function Dual 4K Hybrid Video Docking Station
Model No.: 1171
This is Gas Spring Dual Monitor Arm with Full Function Dual 4K Hybrid Video Docking Station. This product is a new combination of Dual Monitor Desk Mount and Dual 4K Hybrid Video Docking Station, gives you dual-display visuals and multiple peripheral connections. Connecting 2 Hybrid displays (DisplayPort/HDMI) with DisplayLink IC, expands multiple connections, PD charging and durable gas springs to organize your desktop, improves the comfort and productivity of using computer. Support macOS for M1/M2, ipadOS, Windows7-10, and Android system.Note: Computer require install the DisplayLink driver.
Inquiry Now
Overview:

13-in-1 Full Function Dual 4K Hybrid Video Docking Station

Input: USB-C

Output:

2x HDMI: 4K@60Hz

2x DisplayPort: 4K@60Hz

1x RJ45: 1000MB/s

1x 3.5mm Headset Jack: support stereo output and recording

1x USB-C: 3.1 Gen2, 10Gbps

1x USB-A: 3.1 Gen2, 10Gbps

2x USB-A: 3.0 Gen1, 5Gbps

1x SD/TF3.0: 104MB/s

1x DC: 130W, 100W to laptop

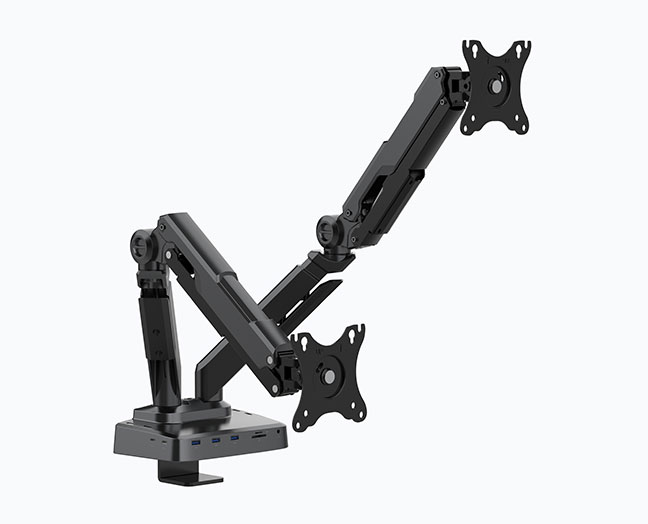

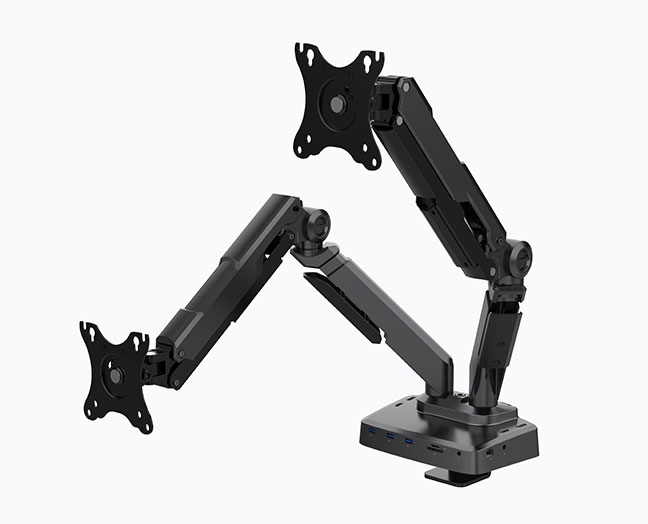

Gas Spring Dual Monitor Desk Arm Mount

Material: Zinc alloy (Arm shell+Base), Steel (Arm inside+VESA pattem), Plastic (Cable management)

Load Capacity: 0-10kg per arm

Fit Size: Max 32" per arm

VESA Pattern: 75 x 75mm/100 x 100mm

Screen Tilt: -45° to +90°

Arm Swivel: -180° to +180°

Screen Swivel: -90° to +90

Screen Rotation: 360°

Grommet Base: YES

C-Clamp Base: YES


Product Features:

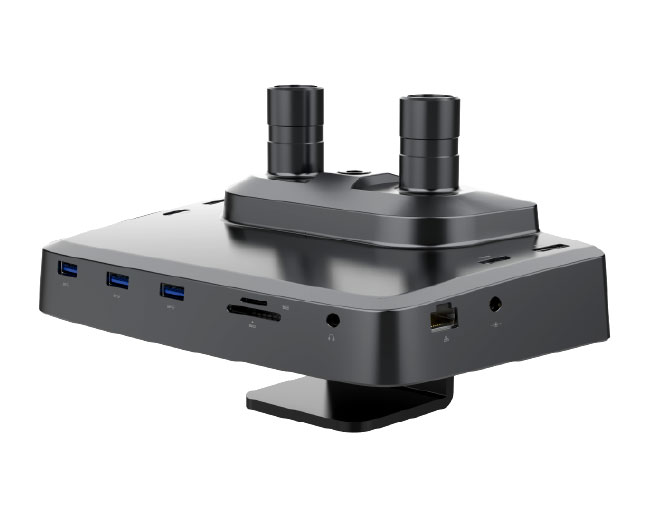

1. [Base with 13 in 1 hub] This base with hub is equipped with 2x HDMI (or DP) for dual HD video outputs, USB 3.2 Gen2, USB-C 3.2 Gen2, 2x USB-A 3.2 Gen1, SD/TF car reader, a 130W DC Charging, RJ45 wired Gigabit Ethernet, and 3.5mm Audio.

2. [UHD 4K Output and Triple Display] Mirror, extend your screen, increasing productivity and making it more convenient to manage multiple applications. Support a single HDMI (or DP) display up to 4K@60Hz and dual HDMI (or dual DP) display up to 4K@60Hz. So you can get 3 different screens (laptop screen + two external screens).

3. [Super speed data trasfer] One 3.2 Gen2 USB port and one 3.2 Gen2 USB-C port both support high speed rates data transfer up to 10 Gbps; 2x USB 3.2 Gen1 ports provide a stable data transmission up to 5 Gbps. It also has SD and TF slots for easy access to files from universal SD and Micro SD Memory Card, supports 2 cards reading simultaneously.

4. [High-speed Charging & RJ45 Ethernet & Audio/mic] The Dock provieds a 130W DC charging ports, which is compatible with 24V/5.41A Power adapter. The Ethernet port is able to speed up to 1000Mbps for use. Generic 3.5mm audio can also meet your daily audio requirements.

5. [Massive Docking Station] Please note only Windows system support MST, Mac OS DOES NOT support MST. The two connected monitors would MIRROR each other.

6. [32 inch Large Monitor Support] VESA 75x75/100x100mm compatible full motion multi monitor mount supports 2 displays up to 32" (17.6lb/8kg) per arm.

7. [Install In 10 Min or Less] The 1-piece gas spring arm simplifies the assembly. You just need to choose the proper mounting base and mount the monitors. The setup can be completed in 10 min or less. Comes with both C clamp and grommet kits, this stand fits desks with or without a hole.

8. [Optimize Your View and Workstation] The stand allows your monitor to swivel, tilt and rotate. Freely set your monitors to customized angle and position while saving up much valuable space on your desktop.

9. [Hold Your Monitor Stably] The solid construction and stable clamp/grommet base provide stable and secure holding for your monitors.
