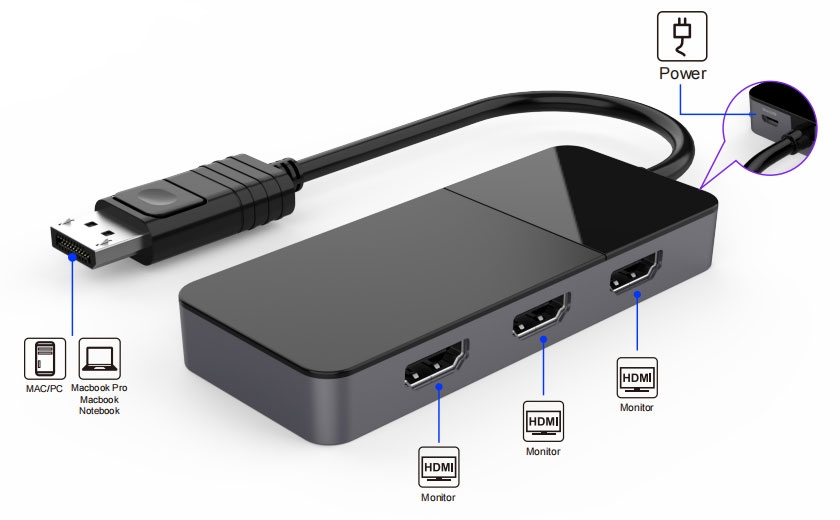

Details about DisplayPort to 4K HDMI Multi Monitor Adapter, DisplayPort to 3 Port HDMI MST Hub 0977

Fullink DisplayPort to 4K HDMI Multi Monitor Adapter, DisplayPort to 3 Port HDMI MST Hub 0977 allows you to connect three displays to your DisplayPort enabled laptop, Ultrabook, or PC. Configure these added monitors anyway you want; Works as a splitter with the same content on each monitor, extended mode with independent monitors, or video wall mode joining multiple monitors together as one display.  *Note: Mac OS does not support MST technology and will only mirror each display.


HDMI-MST-Hub


Resolution

One screen: 4K@60Hz with DSC1.2 (Display Stream Compression)

Two screens: 4K@60Hz with DSC1.2 (Display Stream Compression)

Three screens: 4K@60Hz with DSC1.2 (Display Stream Compression) or 4K@60Hz+4K@30Hz+4K@30Hz without DSC


Three Display Modes

Mirror Mode

Extended Mode

Video Wall Mode


This DisplayPort to HDMI MST Hub allows you to display independent content on each individual display to make multitasking easier and increase your productivity. Great solution to create the ultimate work station or gaming station. Adding additional displays to your system is simple with MST Hubs; however, they are mostly dependent on your Graphics Card's capability to operate properly. Please ASK if you're not sure, before purchasing. *Note: AMD Eyefinity or NVIDIA Surround technology graphics adapter is required to support Panoramic Video Wall mode.


Specifications

Input: DisplayPort

Output: 3HDMI

Certificate: FCC, CE, ROHS, REACH

Housing Material: ABS

Color: Black

Weight: 127g

Dimension: 105 x 43 x 12.8mm

Operating temperature: 0℃ to + 40℃

Storage temperature: -20℃ to + 70℃

Relative humidity:5% to 90% RH (non-condensing)

Warranty: 1 years limited


Package Contents

1x DisplayPort to 3 Port HDMI MST Hub

1x User Manual


Compatible Devices

Systems with an available DisplayPort v1.2 (Check PC model on manufacturer website if not sure)

Windows 10 / 8.1 & 8 / 7

MacOS operating system does not support MST function and will only mirror the displays (SST)

Graphics Card: NVIDIA GeForce RTX2080TI/NVIDIA GeForce GTX1060, NVIDIA GeForce GTX1070TI...


Applications

Video editing room, Web design studio, Photo shooting room, Workstation, Office, Home office, Conference room, Educational facilities, Small seminar, Gaming room, Medical office, Testing lab, Baking, Hotel, Service room ...
