Details about Triple Video Display Monitor Adapter, USB C MST Hub 0912

Fullink 0912 is a USB C MST Hub with PD3.0 charging port, it can easily transform a single USB-C (USB Type C) port to a video hub with DisplayPort, HDMI, and VGA, set up your displays as splitter, or extended mode with independent monitors. Maximum display resolution depends on the number of displays installed. Refer to the video resolution table for more information.

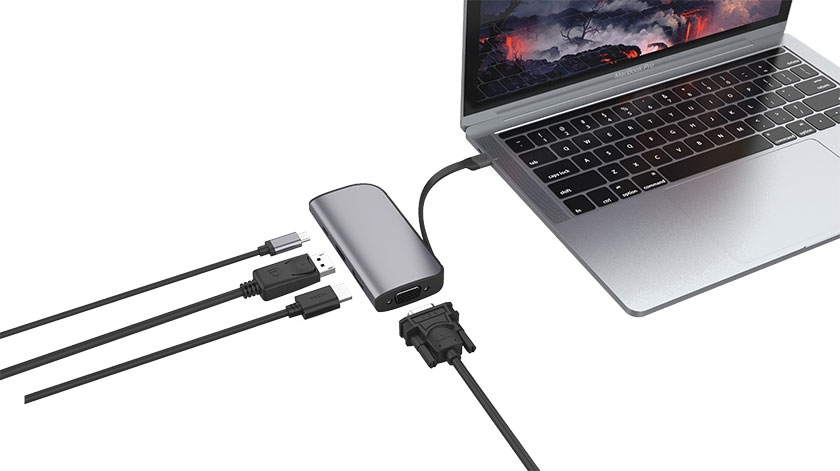

mst hub


Using this powerful and Efficient 3-in-1 Monitor Adapter MST Hub, you no longer have to worry about connecting multiple adapters that clutter your work space. This dock offers portability and the ability to connect to up to 3 displays via 1x HDMI, 1x DisplayPort, and 1x VGA ports for ultimate productivity.

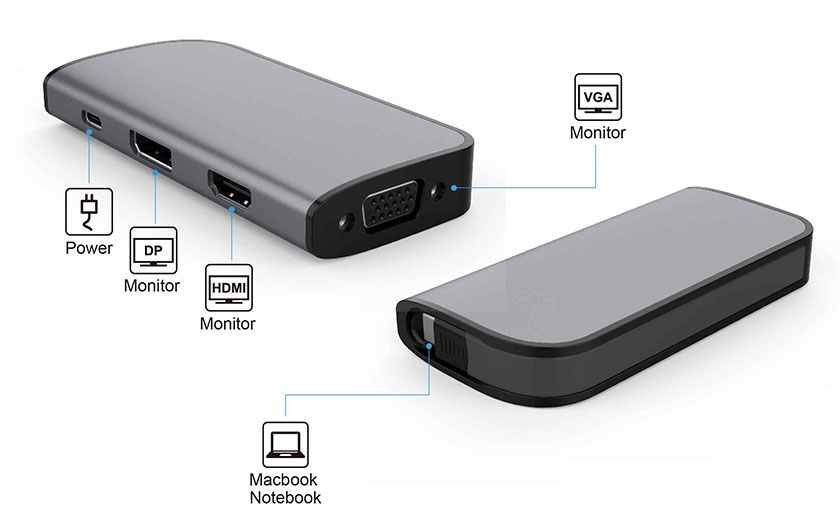

Ports

4K HDMI: Connect a 4K display

4K DisplayPort: Connect to a DisplayPort display

VGA: Connect a VGA display

USB C PD3.0: Power Delivery 3.0 compliant up to 100W (20V/5A)


Multiple Display Modes

Extended Display Mode: Maximize efficiency while using 2 or 3 displays (Windows only).

Mirror Mode: Copy the same content across every connected screen.

Video Wall Mode: Requires either an AMD Eyefinity, Intel, or NVIDIA Surround technology graphics adapter.


Video Resolutions and Combinations

1 Screen (DP): 4K@60Hz

1 Screen (HDMI): 4K@30Hz

1 Screen VGA: 1080p@60Hz

2 Screens (DP + HDMI): 4K@60Hz + 4K@30Hz

2 Screens (DP + VGA): 4K@30Hz + 1080p@60Hz

2 Screens (HDMI + VGA): 4K@30Hz + 1080p@60Hz

3 Screens (DP + HDMI + VGA): 4K@30Hz + 1080p @60Hz + 1080p@60Hz

3 Screens (DP + HDMI + VGA): 1080p@60Hz + 4K@30Hz + 1080p@60Hz


Features & Specifications

USB-C (PD): Power Delivery 3.0 compliant up to 100W (20V/5A)

Compatible with HDMI and DisplayPort standards

Outputs: DisplayPort, HDMI, VGA, USB Type-C (PD 3.0 Charging)

Dimension: L100.7 x W47.9 x H16.25mm

Regulatory approvals: FCC, CE, RoHS


Package Contents

1x USB C MST Hub 0912

1x User Manual


mst hub

Compatible Devices

1. PC with an available USB-C with "DisplayPort Alternate mode" (Alt Mode) or Thunderbolt 3 port. Not all USB-C ports/systems support Alt Mode functionality

2. Windows 10 / 8.1 & 8 / 7 (Multiple monitors simultaneously)

3. Mac OS 10.13 or later (Only one monitor at a time)

4. Mac OS currently does not support MST function will only mirror displays (No extended displays)

5. HDMI & DisplayPort


Important Notes

1. Mac OS currently does NOT support MST function and will only mirror displays (No Extended Display mode).

2. Requires a USB-C port that supports "DisplayPort Alternate Mode" (DP Alt Mode). Not all USB-C ports/systems support Alt Mode functionality.

3. Requires GPU/Graphics card supporting more than 3 external displays; Intel CPUs with HD Graphics are limited to 3 external monitors altogether.

4. Using Windows Display Utility and NVIDIA Utility is limited to 2 displays.

5. When mixing 4K with 1080p or lower resolution displays, connect the lowest resolution display to the hub first.

6. The computer and power adapter must support PD3.0 specification, otherwise the MST hub will reset when power delivery is disconnected.
