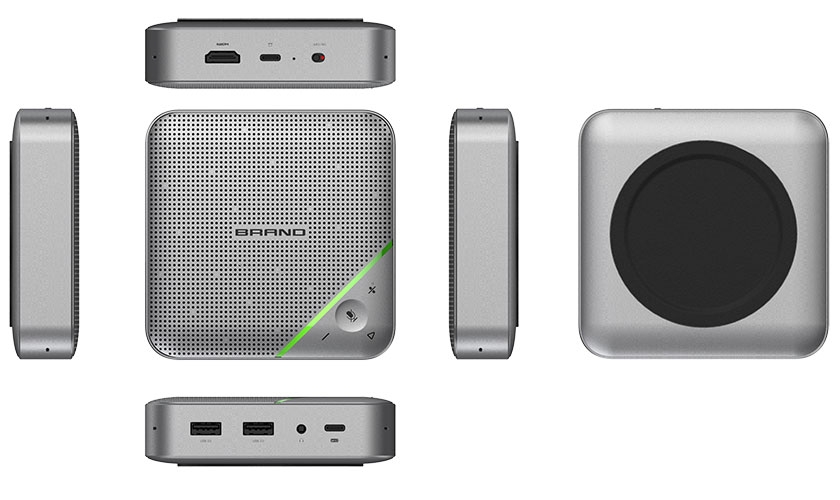

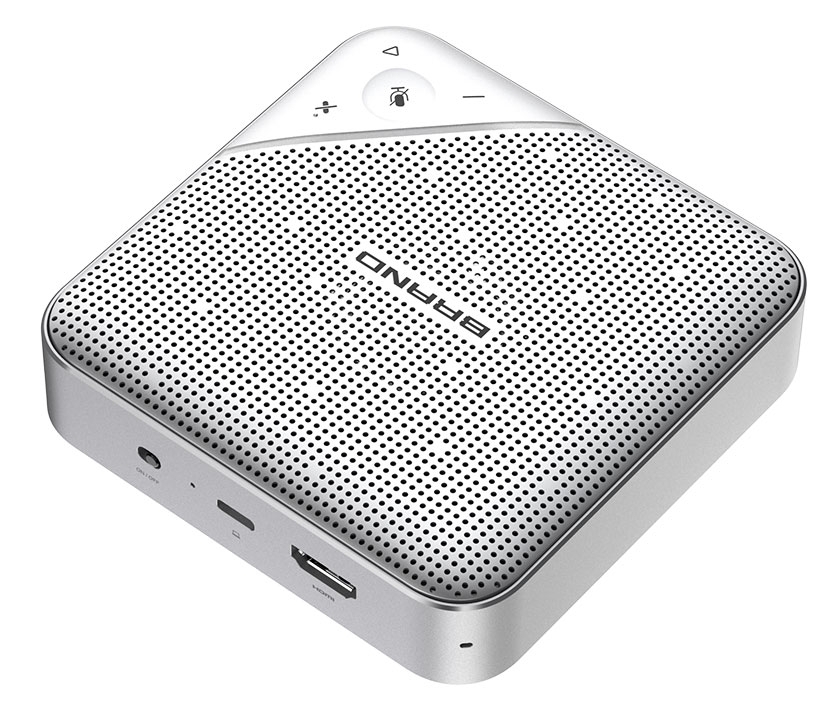

Conference Speaker with Multiport 4K HDMI Display USB C Hub, 1243 is a computer speakers with microphone designed specifically for hybrid work. It features a new technology that combines Speakerphones, Microphone and Multiport USB C Hub capabilities into one compact box.
Speakerphone
USB Hub
HDMI Output
Charging Port
1. Inovatiove combination of conference speaker and usb c hub. It has not only more comprehensive features and more frequency of utilization, but also compact design and small sharp with 105*105*28.5mm.
2. Five output ports provide multi-function application to meet user requirements in different scenarios, including Video Display, Data Transmission, Charge, Headset mode and Loudspeaker mode.
3. Conference Speaker with microphone, with 15ft pickup range and all-round 360° automatic voice balance. Won't matter where you place the conference speakerphone, it will still accurately pick up all the various voices around it. 4 Omnidirectional microphones adopts enhanced noise canceling technology, eliminating background noise in your meeting room.
4. Real-time voice optimization is conducted by the customized ENC algorithm. Voice volume is automatically balanced. The speakerhub ensure you always sound crystal-clear to the other side.
5. It is compatible with most popular online conferencing platforms including Zoom, Skype, Google Meet, Facetime and more; you have the flexibility to work across your preferred conferencing platforms. And can be connected to your phone or computer with the USB-C cable.
Video
This conference speaker with usb c hub offers 4K movie quality HDMI extension. Stream movies, presentations and video games to your monitor in one click: HDMI port can be used at a resolution of up to 4K@30Hz, backward compatible with 1080p@60Hz/ 1080i@60Hz/ 720p @60Hz/ 480p@60Hz; Support HDCP1.4, 5.1CH, 3D.
USB
1x USB-C: Connect with PC, * confirm your computer is Thunderbolt 3 or USB-C that supports DP Alt mode and ensures supports USB power delivery 3.0.
2x USB-A 3.2 Gen 1: Data transfer rate up to 5Gbps, 5V/1.5A, compatible with USB2.0/1.1 specification. Convenient USB ports allow you to connect mouse and keyboard without lag.
1x USB C PD3.0: This conference speaker includes a USB-C 3.2 Gen 1 to USB-C cable for connecting laptop/notebook, PD passthrough 100W to provides up to 85W Power Delivery charging for laptop, notebook, tablet, and smartphone and ensures enough power for USB peripherals.
Other Ports
AUX OUT: Stereo 16bit48K 32Ω, support section three/four earphone, speaker will be mute after insert earphone into this port.
Speaker: Mono output max support 4W, it can be used in 30 square meters. ( 5-Meter radius is available).
Mic: 4pcs MIC, Omni-directional, Support to pick up sounds from all direction.
Volume+/- touch key: Touch to execute at every 1 second.
Play/Mute touch key: Touch to execute, suitable for mute/ play/ pause function.
Volume light: Eight level in total, default the volume at 20% when power on this speaker hub.
Mute light: 4pcs red light to indicate the speaker hub whether turn on/off mute function, release mute recover to the current volume.
Play light: Only works when computeris playing music.
USB sound card light: LED blue light, Connect with computer and turn on Speaker switch, blue light will bright after 2-5 seconds.
Speaker Switch: Slide switch, Turn on the hub and speaker, blue light will bright after 2-5 seconds.
Operating temperature: 0 ℃ to +70℃
Storage temperature: ﹣40 ℃ to +80℃
Relative humidity: 0% to 85% RH (non-condensing)
Dimensions: 105 x 105 x 28.5mm
Weight: 200g/0.44 lbs
Color: Sliver
Housing material: ABS
Certifications/Standards: FCC, CE, RoHS, REACH
Warranty: 1 years limited
1x Conference Speaker with Multiport USB C Hub
1x USB-C to C cable
1x User Manual

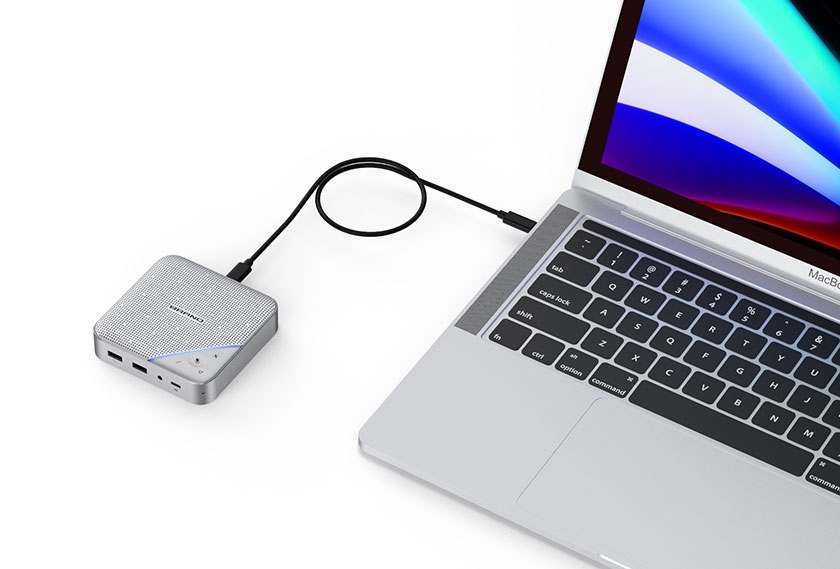

1. Please connect speaker hub to your phone or computer with USB-C to USB-C cable, then green LED of side lights up, it means device is connected successfully.
2.Volume Adjustment: The power-on volume is decided by your device. Please short press volume keys “+/-” to adjust volume; Please long press the volume keys “+/-” to raise or lower volume quickly; The surface tape light indicate volume change.
3. Mute mode and Unmute mode: Short press the mute button, enter mute mode, touch again, then back to unmute mode; The surface tape light shows RED in mute mode and BLUE in Umute mode.
4. Music Play: Short press to Play or Pause music.
5.Loudspeaker Switch: Please slise the “ON/OFF” switch of side to turn on or turn off the loundspeaker.
Office, Home office, Workstation, Classroom, Huddle room, Presentation room, Conference room, Online class, Online meeting, Business trip, Video/Audio conference room
- Compliant with mac® system for M1 and M2
- Compatible with Windows® 11 (64-bit) / 10 (32-/64-bit) / 8.1 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit) and macOS® 12.x to 10.10
Desktop or laptop with an available USB-C with DP Alt mode or Thunderbolt 3 port
Compliant with mac® system for M1 and M2
Windows® 11 / 10
macOS® 12.x to 10.10
