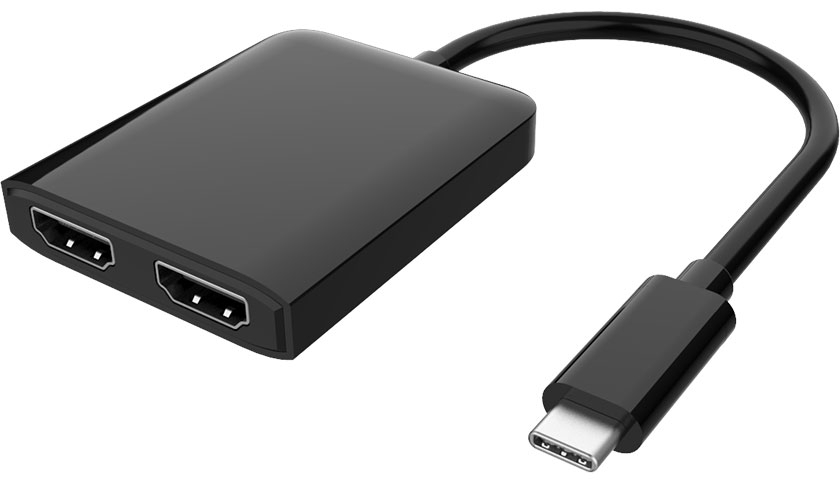

This USB-C to Dual HDMI 4K Video Splitter, USB C MST Hub allows you to connect 2 HDMI monitors to a single USB-C port with Multi-Stream Transport (MST) technology, 2 HDMI, Dual 4K@60Hz. If you often engage in high-level computing, including gaming, then you might appeal to the USB-C to Dual HDMI 4K Video Splitter. This USB C MST Hub supports the connection between a computer and UltraHD displays, providing outstanding performance and entertainment for your needs.
This MST Hub Splitter is easy to use with no software installation or set-up required, simply connect one end to your computer and the other with an existing HDMI cable. This then converts the USB-C video signal into an HDMI signal at up to UHD 4K resolution. Additionally, with the supported 4:4:4 color format, you can expect true RGB color without typical color degradations. Audio isn't an issue, either, with the USB-C Adapter also transmitting up to 8-channel audio. This creates the most immersive sound and video experience that makes your entertainment unbeatable.
Input: USB-C (Type C) or Thunderbolt 3/4
Output: 2x HDMI, 4K@60Hz
Audio: 7.1 channel surround sound from HDMI ports
Certifications/Standards: FCC, CE, ROHS, REACH
Housing material: ABS
Color: Black
USB C Cable Length: 250mm
Dimension: 60 x 49 x 11.3mm
Weight: 50g
Operating temperature: 0℃ to + 40℃
Storage temperature: -10℃ to + 70℃
Relative humidity:5% to 90% RH (non-condensing)
Warranty: 1 years limited
Resolution
■ The host Computer with USB-C supporting DP 1.4 Alt Mode will be able to deliver 4K at 60Hz or Dual Monitors 4K at 60Hz with HDR.
■ Single HDMI TV\Projector\Monitor supports display resolution up to 4K at 60Hz frame rate 4:4:4 with DSC (Display Stream Compression)
■ Dual HDMI TV\Projector\Monitor supports display resolution up to 4K at 60Hz frame rate with DSC (Display Stream Compression)
■ Supports HDR, HDR10, HDR10+
* Note: Maximum resolution output is dependent upon the system's capability to support the same and on the peripherals, connecting cables, and display settings for your system. Please refer to the display resolution combination chart to correctly match your requirements with the output.
1x USB-C to Dual HDMI 4K Video Splitter
1x User Manual
■ This USB-C to Dual HDMI 4K Video Splitter splits a single USB-C output to two 4K @60Hz HDMI displays/monitors with Multi-Stream Transport (MST) technology to boost your productivity.
■ 4K Ultra HD Resolution: The MST Hub Splitter supports UHD video resolution up to a single or dual 4K (3840x2160) @60Hz in USB-C DP 1.4 Alt mode and 7.1-ch surround sound.
■ Display Modes: This MST hub allows the use of Multi Stream Transport (MST) technology for multi-monitor displays, such as Mirror mode and Extended mode to HDTV or projector for perfect visual displays.
■ Multiple Connectivity Port: This USB-C to Dual Port HDMI Converter comes with one USB-C DP Alt mode port (Host) and two HDMI video output ports.
■ Maximum Compatibility: Compatible with DisplayPort 1.4 graphics card with AMD, Intel or NVIDIA.
■ Supports Plug-n-play, no driver installation required and no extra power need.
■ Compact Design: This MST Hub Splitter is easy to carry on the go or at the workstation. Smooth ABS housing with heat dissipation design for reliable performance and increase efficiency.
■ PC or Laptop with an available USB-C port that with DP 1.4 Alt mode or Thunderbolt 3/4 port
■ Windows ®11/10, Mac OS
* NOT Compatible with: HP EliteBook 745 G4 / HP Elitebook 820 G3 / HP EliteBook 828 G4 / HP 14s-be102TX / HP 14-ce1004TX 14 / HP Probook 650 G2 / HP Probook 455 G4 / HP Probook 430 G5 / HP Pavilion-14 bf116tx / HP Pavilion 15 ck009 / HP Pavilion Power Laptop 15-cb / Lenovo ideapad 340s, Tablets / Google Pixel phones / Nintendo Switch / Acer Aspire A5 / Oneplus 5T Phone
■ This USB-C Adapter will deliver MST (Each monitor will be independent - Extended Desktop ) to Windows OS Only. If your computer is MacOS this adapter will deliver SST Mirroring (Both Monitors will have the same Image).
■ If your laptop\desktop USB-C port supports ONLY data this adapter will not work. Please contact your Computer Manufacturer to verify if your Laptop\Desktop USB-C Port Supports DisplayPort Alt Mode.
■ This USB C to Dual HDMI 4K 60Hz Adapter is compatible with HDMI monitors, projectors, or TV only. It will not work if you try to convert from DisplayPort to DVI, VGA or HDMI.
■ Mirror mode using Windows Display Utility and NVIDIA Utility is limited to 2 displays.
■ Requires GPU / graphics card to support at least 2 external displays to use both video ports at the same time with extended mode.
■ USB-C to deliver 4K at 60Hz your laptop must support USB-C DP1.4 Alt Mode. If USB-C supports the older version DP1.2 Alt Mode HDMI will deliver 4K at 30Hz.
■ A/V Conference room
■ Office
■ Home office
■ Workstation
■ Classroom
■ Video editing room
■ Small seminar
■ Medical office
■ Testing lab
