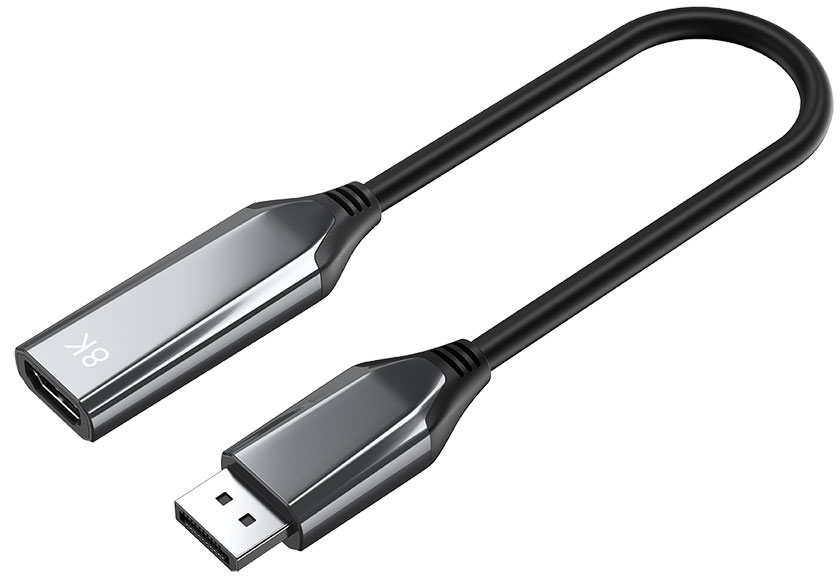

This Fullink DisplayPort to HDMI Adapter with 4K@144Hz effortlessly convert a DisplayPort port on a gaming PC or multimedia system to an HDMI connector for a television or monitor. Maintain support for the latest HDMI standards, including 4K@144Hz and 8K@60Hz support.
The DisplayPort to HDMI Adapter is designed specifically for those who enjoy high-level computing, graphics, and gaming, bridge the gap between 8K DisplayPort and HDMI. HDMI up to 48Gbps allows even smooth 8K video playback, especially when combined with a 60Hz frame rate and HDR creating lifelike colors and movements giving users the ultimate visual experience. Converts DisplayPort video signal at up to 8K 7680×4320@60Hz or 4K 4096x2160@144Hz.
Input: DisplayPort (DP) v1.4 compliant
■ Support 1/2/4 lanes up to HBR3 (8.1-Gbps) input
■ Built-in high-performance adaptive equalizer
■ Support 1-MHz AUX channel
■ Support DSC v1.2a and backward compatible with the former versions
■ Support DSC decoder and pass-through mode
■ Support max. resolution/timing up to 8K@60Hz / 4K@144Hz
■ Support CEC over AUX channel
■ Support LPCM audio format with max audio sample rate up to 8-channel 192KHz
■ Support HBR audio format up to 2-channel 768KHz
■ Support 3D audio format up to 16-channel 96KHz
Output: HDMI Female
■ Support maximum resolution/timing up to 8K@60Hz / 4K@144Hz with DSC
■ HDMI compliant transmitter, data rate up to FRL mode up to 12-Gbps per channel and TMDS mode up to 6-Gbps
■ LPCM and Compressed Audio encoding formats
■ Support LPCM audio format with max audio sample rate up to 8-channel 192KHz
■ Support HBR audio format up to 2-channel 768KHz
■ Support 3D audio format up to 16-channel 96KHz Support DSC v1.2a and backward compatible with the former version
■ Support DSC pass-through mode
■ Audio stream handling
Cable length: 216mm
Cable weight: 5g
Color: Black
Operating temperature: 0 ℃ to + 40℃
Storage temperature: -10℃ to +70℃
Humidity: < 85% non-condensing
Certifications/Standards: FCC, CE, RoHS
Warranty: 1 years limited
■ Desktops and laptops with an available DisplayPort output, monitor with HDMI input
■ Converts DisplayPort video signal at up to UHD 4K 4096x2160@144Hz
■ For HDR function, the source system needs to support DisplayPort 1.4 and the screen needs to have support for HDR (High Dynamic Range)
■ Supports HDR - Dolby Vision HDR, HDR10, HDR10+ and HLG
■ Supports 4:4:4 color format with clear RGB colors
■ Supports RGB/YCbCr video color formats with a color depth of 16 bpc (or 48 bits per pixel)
■ Jitter cleaning PLL provides a stable HDMI output signal
This DisplayPort to HDMI Adapter utilizes the latest hardware technology to allow low operational temperatures.
Operation mode:
■ 8K@60Hz with 10bpc, YUV420, DP: 4-lane HBR3, HDMI: FRL 10G, HDR10, and DSC (Dec) - 1,500 mW
■ 8K@60Hz with 10bpc, RGB/YUV444, DP: 4-lane HBR3, HDMI: FRL 6G, HDR10, and DSC (Passthrough) - 1,100 mW
■ 4K@144Hz with 10bpc, RGB/YUV444, DP: 2-lane HBR3, HDMI: FRL 10G, HDR10, and DSC (Dec) - 1,100 mW
■ 4K@60Hz with 8bpc, RGB/YUV444, DP: 4-lane HBR2, HDMI: TMDS 6G, SDR - 780 mW
Stand-by Mode: 20 mW
Connect the DisplayPort end of the adapter to your computer or other device. Make sure the connection is secure.
2. Connect the HDMI end of the adapter to your TV or monitor. Make sure the connection is secure.
3. Turn on your TV or monitor and set it to the correct HDMI input.
4. On your computer or device, make sure that the resolution and refresh rate are set to match those of the TV or monitor.
5. Check if your device supports HDR, if it does then you should enable it in the settings.
6. Enjoy your high resolution and high refresh rate content.
Systems with a DisplayPort (DP++) output
HDMI monitor
This product is SPECIFICALLY designed to work with the latest Graphics Processing Units (GPUs), supporting DSC 1.2. At the time of publishing, these are the supported GPUs:
■ NVIDIA RTX: TITAN RTX, RTX 2060, RTX 2070, RTX 2080, RTX 3060, RTX 3080, RTX 3090, RTX 4090, RTX 4080
■ AMD Radeon: RX 6000, RX 7900 XTX
■ QUADRO: RTX8000, RTX6000, RTX5000, RTX4000, RTX3000 MOBILE
■ Intel 11/12 Based Gen: Alder Lake, Tiger Lake, Ice Lake, Iris Plus Graphics, UHD Graphics
■ Please update your TV Firmware to the version which supports these resolutions/refresh rates.
■ Please update your Graphic drivers on your PC and make sure that DSC1.2 is supported on your devices to support these resolutions/refresh rates.
■ This is not a bi-directional cable. Does not work for HDMI to DisplayPort conversion.
