Details about USB-C to HDMI Video Adapter 8K@60Hz & 4K@120Hz with DSC Function 1036

This Fullink USB C to HDMI adapter offers 8K@60Hz / 4K@120Hz with DSC (Display Stream Compression) Function & 8K@30Hz & 4K Resolution Without DSC. This adapter is Thunderbolt 3 Compatible. Perfect for gaming, video editing, streaming, and any other tasks that require uncompromising resolution.


For the ultimate video or home-entertainment immersion, 8K content is the future and it is already here from 8K streaming service, video gaming, smartphone videos, or live TV and sports. With this USB Type-C to HDMI Adapter, your desktop, notebook or tablet with USB-C now has the luxury of connecting to a HDMI display.



USB-C-to-HDMI-Video-Adapter


Features

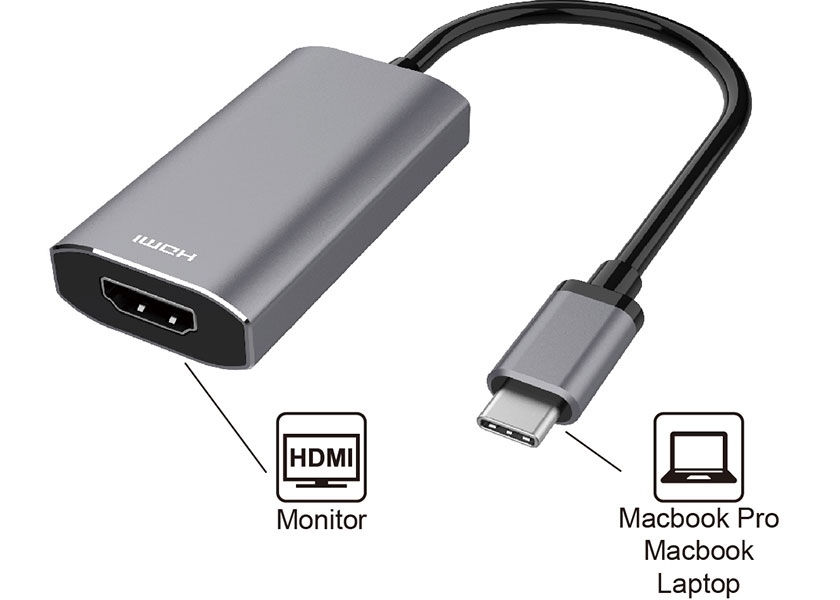

■ Easily connect USB Type-C to HDMI Adapter to your computer then to a HDMI display, and take pleasure of high-end resolutions.

■ Upgraded Compatibility - This USB-C to HDMI Video Adapter is compliant with DisplayPort 1.4 (32.4Gbps bandwidth), HDMI HDR10, HDCP 2.2 or 1.4.

■ HDMI supports 8K 7680x4320@60Hz & 4K 3840x2160@120Hz with DSC function.

■ HDMI also supports 8K 7680x4320@30Hz and is backward compatible with 4K resolution without DSC.

■ This adapter is designed to be plug-n-play, no driver installation is required, and no external power is needed, either.

■ Portable, Compact, Lightweight Aluminum Design.

■ Sleek aluminum enclosure insures superior durability and efficient heat dissipation.


Specifications

Input: USB-C (DisplayPort Alt Mode)

Output: HDMI

Video resolution: 4K@60Hz, 4K@120Hz (w/DSC), 8K@30Hz and 8K@60Hz (w/DSC)

Audio Support: 7.1-ch PCM

Bandwidth: Up to 32.4Gbps

Dimensions: 60 x 14 x 31.5mm

Weight: 40g

Cable length: 150±10mm

Color: Space Grey, Black

Material: Aluminum

Operating temperature: 0℃ to + 40℃

Storage temperature: -10℃ to + 70℃

Relative humidity: 0 to 85% RH (non-condensing)

Certifications/Standards: FCC, CE, RoHS, REACH

Warranty: 1 years limited


Package Contents

USB Type-C to HDMI Adapter

User Manual


USB-C-to-HDMI-Video-Adapter


NOTE

■ This adapter requires a USB-C port which supports "DisplayPort Alternate Mode".

■ not all USB-C ports/systems support Alternate Mode functionality.

■ Please check the user guide of your laptop/ device first before purchasing.

■ This is NOT a bi-directional adapter, Does not support HDMI to USB-C conversion.


System Requirements

■ Windows 7/8/10

■ Android 8.0

■ Mac OS 10 &UP

■ iPad OS 13.0

■ Chrome OS

■ Android OS


Compatibility

Apple M1 chip supports video output up to 6K:

MacBook Pro M1/ M1 Pro, MacBook Air M1, Mac Mini M1, iPad Pro M1 ...

USB-C 8K Laptop:

ASUS ZenBook 14 (TGL), ASUS TUF Dash F15 (2021), ASUS ROG Zephyrus G14 (2021), Razer Blade 14 Gaming Laptop, Lenovo Legion 5 Pro ...
