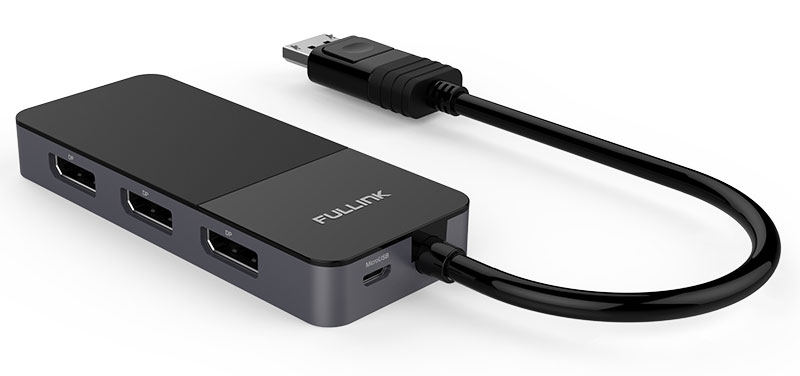

This Fullink DisplayPort to 8K DisplayPort Video Splitter, Triple DisplayPort MST Hub 0834 enables you to connect three displays to your DP computer, making multi-tasking much easier. Using this multi-monitor video splitter, you can mirror your display onto multiple monitors, stream independent content to each display or extend your screen to create a video wall effect.
Input: DisplayPort
Output: 3 x DisplayPort
- Single DP output: 8K@30Hz or 8K@60Hz with DSC (Display Stream Compression)
- Dual DP output: 4K@60Hz or 5K@60Hz with DSC (Display Stream Compression)
- Triple DP output: 4K@60Hz+4K@30Hz+4K@30Hz
- Support HDR10, 3D Format, DSC1.2, HDCP2.2, Audio 7.1 channel; SST and MST
Display Modes: Mirror, Extended, Video wall
Incredible Picture Quality
Supporting four times the resolution of 4K, this DP 1.4 MST hub delivers the stunning quality of UHD at resolutions up to 7680×4320 at 30Hz on a single monitor and supports multi-monitor applications at lower resolutions and refresh rates, enabling a dynamic work environment whether you’re in the office, at home or traveling.
Dimension (L*W*H) : 105x43x14mm
Weight: 0.12 lbs / 55g
Color: Black+gray
Housing: Plastic (ABS)
Working Temperature: 0℃~70℃
Storage Temperature : -10℃ to +55℃
Relative humidity: 5% to 90% RH (non-condensing)
System Support : Desktop computer or laptop with an available DisplayPort 1.4 Dual mode output; Windows 11 / 10
Certifications/Standards: FCC, CE, RoHS
Warranty: 1 years limited
1x 8K DisplayPort to 3x DisplayPort MST Hub Splitter
1x User Manual
1. Please confirm the monitor's resolution meets resolution requirements before use.
2. Please confirm the PIN not broken/sag/curve in the product before use.
3. Please do not splash liquid into the connector in use.
4. Please put the product in dry place.
5. Not support Macbook Air 7.2 (13-inch, early 2015) / Macbook Air (13-inch 2017).
6. macOS currently does not support MST function will only mirror displays.
7. Both your source and destination must support DisplayPort 1.4 in order to achieve maximum resolution (8K 30Hz).
8. Video Wall mode requires either a AMD Eyefinity or NVIDIA Surround technology graphics adapter.
9. Requires GPU / graphics card to support at least 3 external displays to use all 3 DisplayPort ports at the same time with extended mode.
10. Requires USB 3.0 power source of at least 5V/600mA.
11. AMD RX560 / RX570 / Radeon 7200 Series video cards only support up to 2 displays.
12. The total combined bandwidth among all connected DisplayPort displays must NOT be exceeded
